BotFactory SV2 PCB Printer

Print and assemble large, high-density Printed Circuit Boards faster than any third-party vendor for less

Since we launched our Kickstarter in 2014 and began delivering our first Squinks, the technology has never stopped evolving. Over the past years we have refined the product, the materials, inkjet and dispensing process and the overall user experience, taking your feedback and putting it towards our new products like our  Multilayer printhead  and  PCB Rivet toolpress . Now we are ready to release our BotFactory SV2 PCB Printer, which is a complete redesign of nearly every element of Squink.

In the development of SV2, we focused on providing finer tolerance, higher speed and larger build area, including

  • 8 mil (200 micron) traces

  • More than 2 layers

  • finer glue dispensing with Single-part Epoxy

  • an Assembly System supporting 100+ parts as small as 0402, loaded in SMT strips

  • 6" x 6" (150 x 150 mm) working area

Like Squink, interact with SV2 through a web browser, uploading standard Gerber files, image files and centroid-and-rotation files to print and assemble your boards in minutes!

Odoo CMS - a big picture
Odoo image and text block

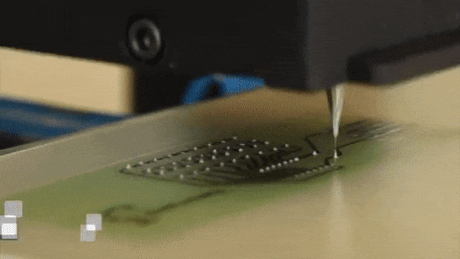

Inkjet Printing

  • New inkjet system, featuring more than 300 nozzles and a much smaller droplet size, allowing for thinner lines
  • Larger ink capacity for more boards per cartridge
  • Cleaning station to automatically maintain nozzles and extend cartridge life-span
  • Wider printhead, allowing for an increased sweep across the substrate and faster printing
Odoo image and text block

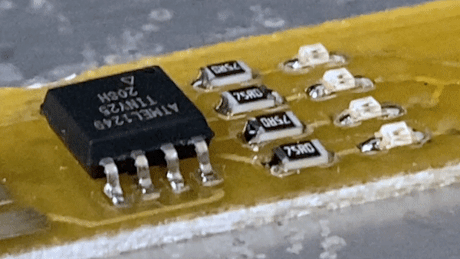

Dispense Finer

  • Compatible with single-part epoxy
  • New motor, gearing and encoder allows for finer control in dispensing process
  • Micro-dispensing tips
  • Cleaning station for automated tip-wiping
Odoo image and text block

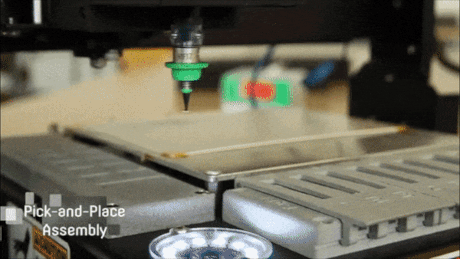

Assemble More, Assemble Faster

  • SMT Strip holder for assembling PCBs with large quantities of similar-parts (i.e. LED arrays, panelized PCBs)
  • SV2 will automatically swap-out the appropriately-sized tips, depending on part size
  • Improved CPU allows for rapid image-processing, and thus faster assembly
Odoo image and text block

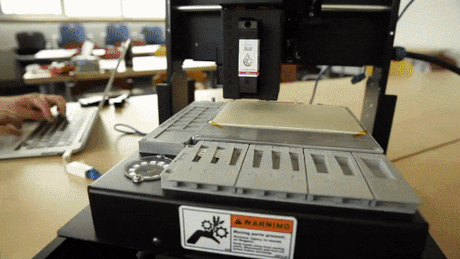

All-Metal Construction

  • All-metal frame and body for maximum durability, positioning precision and repeatability
  • Fan-cooled heatbed and stronger power-supply, providing faster thermal cycling
  • Forward-compatibility - as new heads become available, they will be compatible with SV2
